Step-by-Step Guide to Installing Brass Wire in an EDM Machine

Replacing EDM brass wire after it runs out is a crucial operation to maintain precise cutting performance. Correct wire installation ensures proper wire diameter, stable cutting conditions, and avoids machining errors or poor surface finishes.

At AMS, we aim to provide engineers with a comprehensive guide to installing brass wire in EDM machines, helping you perform this process safely, accurately, and professionally. Discover the full details below!

1. Overview of Brass Wire for EDM Machines

Brass wire is a consumable material used in wire EDM (Electrical Discharge Machining). It is typically made from copper or copper alloys and functions as the conductor that delivers electrical discharges. These sparks generate the heat required to melt and vaporize material from the workpiece.

Experienced EDM engineers are already familiar with brass wire, but newcomers to the field often have questions such as: What is EDM brass wire? What types of EDM brass wire are available? For a more in-depth explanation, refer to our article: “Brass Wire - The Perfect Choice for EDM Machines.”

Over years of working in the precision machining industry, we have observed the trust that manufacturers place in GF brass wire. AMS has supported businesses by simplifying the procurement process—helping them choose the right solutions, clearly understanding production requirements, and ensuring transparent paperwork. GF wire has proven to be a reliable and cost-worthy solution, recommended by many experts in the field.

Brass EDM wire comes in various diameters, commonly ranging from 0.05 mm to 0.30 mm. Standard sizes include 0.10 mm, 0.15 mm, 0.20 mm, and 0.25 mm, usually supplied in spools weighing 5kg, 10kg, or 15kg. Some applications may require customized wire sizes, which certain suppliers can provide.

In Vietnam, many customers prefer 0.20 mm - 0.25 mm spools weighing 5kg or 8kg. Two popular options are:

• AC Brass 900 (Premium Grade)

• AC Brass LP 1000 (Standard Grade)

Both have been well-reviewed by engineers working with AMS for their consistency in hardness, tensile strength, and reduced wire breakage.

2. Applications of Brass Wire in EDM Machining

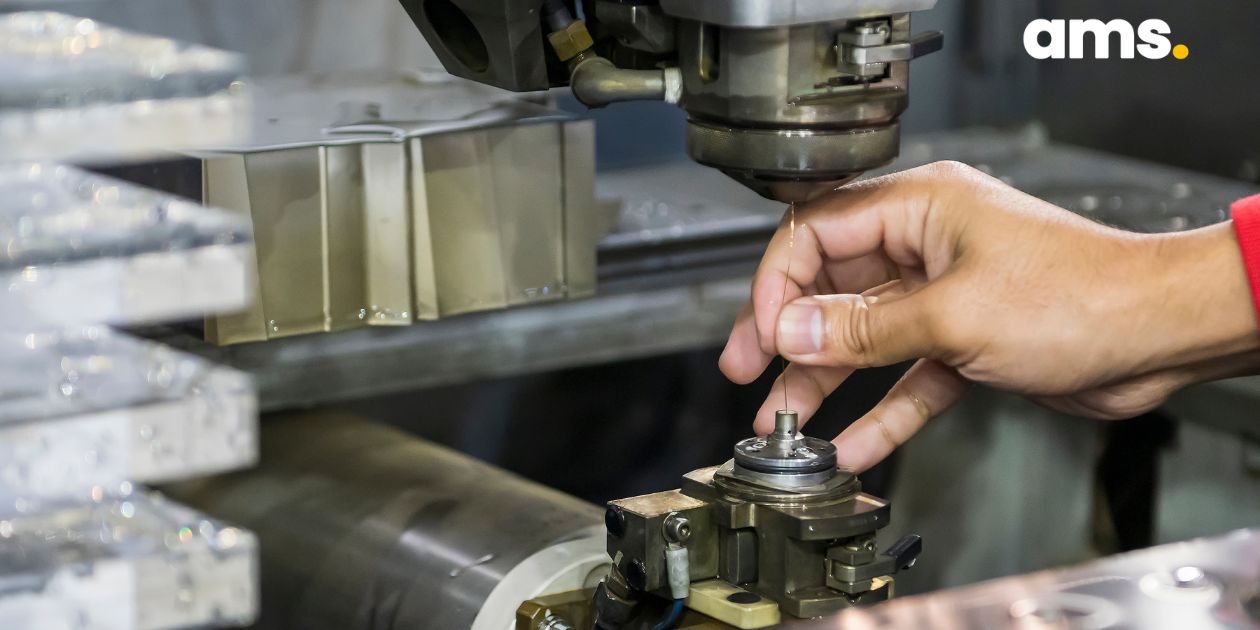

In the EDM process, brass wire acts as the cutting electrode that generates sparks to remove metal and create cavities, contours, holes, or complex shapes defined by CNC programming. Below is a simplified overview of how EDM machining with brass wire works:

• A brass wire (cutting wire) is threaded through wire guides and mounted on the EDM machine.

• The wire is positioned close to the conductive workpiece, leaving a small spark gap.

• As the CNC program runs, the wire moves along the machining axes while controlled electrical discharges occur at set intervals.

• These sparks melt and vaporize small amounts of material from the workpiece surface, ensuring precise erosion.

• Deionized water flushes away debris, while the power supply recharges the gap for the next spark.

• This combination allows the ultra-thin brass wire to cut through hardened steel or specialty alloys, producing accurate components and fine surface finishes.

• Skilled EDM operators carefully adjust wire positioning and machining parameters to achieve clean and precise results.

3. Step-by-Step Guide to Installing Brass Wire in an EDM Machine

AMS recommends the following steps for installing brass wire into your EDM machine. With the detailed instructions below, engineers can perform the installation safely and accurately.

Step 1: Prepare the necessary tools

• Brass EDM wire: Choose the appropriate type and size for your machine.

• Wire cutter/pliers: For cutting and trimming the wire (newer machines may cut automatically).

• Wire threading tool: Helps feed the wire through the guiding components (often automated in modern EDM machines).

• Cleaning cloth: Wipe off dust, dirt, and oil from the machine and wire before setup.

Step 2: Install and clamp the brass wire

• Open the wire spool cover.

• Thread the wire through the guiding components.

• Secure the wire tightly, ensuring it is evenly tensioned and not twisted.

Step 3: Connect the wire to the cutting head

• Feed the wire through the cutting head.

• Clamp the wire securely to the cutting head.

• Make sure the wire has good electrical contact with the cutting head.

Step 4: Check the installation

• Power on the EDM machine and run a test.

• Check whether the wire vibrates or feels loose.

• Adjust the wire tension if necessary for stable performance.

4. Key Advantages of Brass Wire in EDM Machining

What are the standard diameters of EDM brass wire?

Brass EDM wire is typically available in 0.05 mm to 0.30 mm. The most common sizes are 0.10 mm, 0.15 mm, 0.20 mm, and 0.25 mm. Special diameters can also be sourced depending on application requirements.

How is precision EDM brass wire manufactured?

The production process involves strict quality control, including copper selection, rod forming, wire drawing, inspection, spooling, and functionality testing. This ensures accurate diameters and reliable performance for CNC EDM cutting.

Can EDM brass wire be recycled after use?

Yes. Once a spool of brass EDM wire is consumed during machining, the used wire can be collected and recycled to recover valuable copper and zinc content.

Where to buy genuine GF brass EDM wire?

AMS has been a trusted distributor of precision machining consumables in Vietnam for over two decades. Here's why manufacturers choose AMS as their reliable supplier:

• Guaranteed quality with transparent, genuine sourcing.

• Ready stock for fast delivery.

• Competitive pricing, better than the market average.

• Exclusive promotions: Currently, AMS offers 5-10% discounts on bulk orders from 240 kg.

In the industrial machining market where high-value orders are the norm, genuine price incentives are rare. AMS is pleased to provide this opportunity—contact us today to secure your deal!

5. Conclusion

Installing brass EDM wire is no longer a complicated task once you follow the step-by-step guidance provided by AMS.

At AMS, we are proud to supply GF-branded consumables and machine spare parts to manufacturers across Vietnam. Together, we aim to foster the growth of the precision engineering industry, driving efficiency, prosperity, and added value that contributes to the national economy. AMS is honored to be your long-term partner on the journey toward sustainable growth and industrial excellence.
