  • Heidenhain Encoder RCN 2580 ID 667786-02 - Superior Precision

Heidenhain Encoder RCN 2580 ID 667786-02 - Superior Precisions

Social AMS

Posted by Social AMS on 24th December, 2024

The Heidenhain Encoder RCN 2580 ID 667786-02 is a renowned optical rotary encoder known for its exceptional precision, widely applied in high-precision industrial machinery and automated control systems. This article provides essential technical specifications to help you choose the right encoder for your machines. Additionally, AMS's team of skilled experts offers valuable suggestions for cost-effective purchasing and efficient operation. Explore the detailed information below!

1. Detailed specifications of Heidenhain RCN 2580 - ID 667786-02

  • ID number: 667786-02

  • System accuracy: ±2.5''

  • Data interface: EnDat02

  • Positions per revolution: 268435456

  • Output code: Binary

  • Line count: 16384

  • Output signal: ~1Vpp

  • Cutoff frequency (-3 dB): 400.00 kHz

  • Power supply: 3.6 V ... 14 V

  • Shaft: Hollow through shaft for axial clamping, diameter 22 mm

  • Flange version: Rectangular flange with 85 mm centering collar, drainage channels, aluminum

  • Protection rating: IP64 (EN60529)

  • Operating temperature: 0/+50 °C

  • Max. mechanical permissible speed/rotational speed: 1500 1/min

  • Electrical connection: Flange socket Ultra-Lock, male, 12-pin

  • Pin configuration: D629024

  • Connecting direction: tangential

  • Special characteristics, rotational encoders: none

  • SCIP ID: 96856015-c5bd-4c3c-a7af-ed272563d7d9

>> See more: Heidenhain rotary encoder products

2. Application of Heidenhain RCN 2580 in precision mechanical engineering

In the field of industrial manufacturing and machinery, the Heidenhain RCN 2580 is a familiar component, playing a crucial role in ensuring machine precision to deliver results that engineers expect. Below are some real-world applications of the Heidenhain Encoder RCN 2580 ID 667786-02 in specific machines and industries:

5-Axis CNC Machines and Machining Centers: These machines are responsible for producing metal parts and mechanical components that serve industries such as automotive, aerospace, and mold manufacturing. The RCN 2580 encoder ensures precise positioning and motion of the CNC machine axes during machining, guaranteeing the accuracy of the finished workpieces.

CMM (Coordinate Measuring Machines): CMMs are used to inspect the quality of finished products, commonly applied in mold manufacturing, automotive components, and aerospace parts, ensuring they meet the required dimensions and technical standards. The Heidenhain RCN 2580 supports precise measurement of positions and movements within 3D space, minimizing errors during the quality control process.

Servo Control Systems in Automated Production Lines: Servo systems in automated production lines also rely on the RCN 2580 encoder. This component plays a key role in providing accurate feedback on the position and rotational speed of the servo motor, ensuring the stable and precise operation of control systems.

3. Key Benefits of Using the Heidenhain RCN 2580 Encoder

  • Superior Accuracy: High resolution and low error rates meet the stringent demands of precision engineering.

  • Stability and Durability: IP64/IP67 protection ensures reliable performance in harsh environments with dust, dirt, and lubricants.

  • EnDat 2.2 Interface: Ensures fast and accurate data transmission for seamless integration.

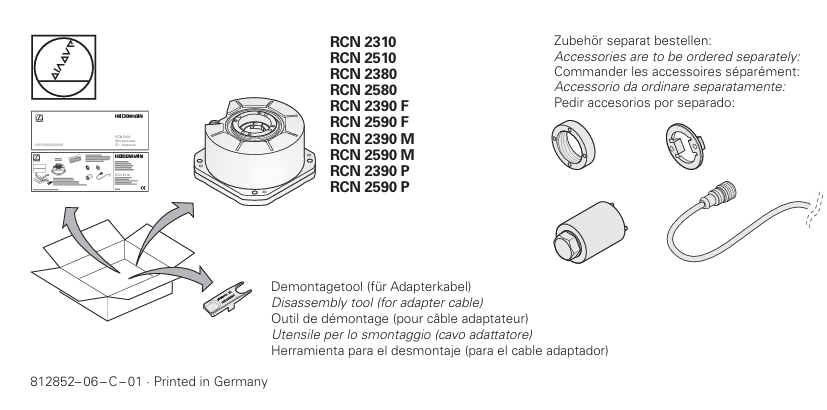

  • Easy Installation and Operation: Optimized design with included accessories simplifies setup and usage.

4. AMS – Authorized Supplier of Heidenhain Encoders

At AMS, we take pride in being an official distributor of Heidenhain products, including the RCN 2580 - ID 667786-02 encoder.

  • Genuine Products: Complete with CO-CQ certification.

  • Official Warranty: Ensuring product reliability and peace of mind.

  • Technical Support: Backed by a team of experienced specialists.

At AMS, we not only guarantee top-quality products but also deliver optimal manufacturing solutions. We value long-term sustainability and stand by our customers through every challenge—whether it’s operational guidance or troubleshooting issues.

Contact AMS today for detailed consultation on Heidenhain encoder solutions!

>> See more: More Than a Supplier – AMS is Your Technical Partner

5. Conclusion

The Heidenhain RCN 2580 - ID 667786-02 encoder is an indispensable component in precision machinery such as CNC machines, grinding machines, coordinate measuring machines (CMM), and automation systems. This product plays a pivotal role in ensuring high accuracy, optimizing productivity, and meeting the stringent requirements of mold manufacturing, automotive components, and precision mechanical parts production.
